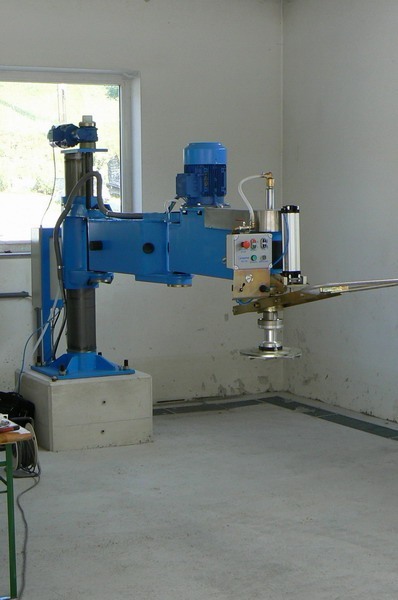

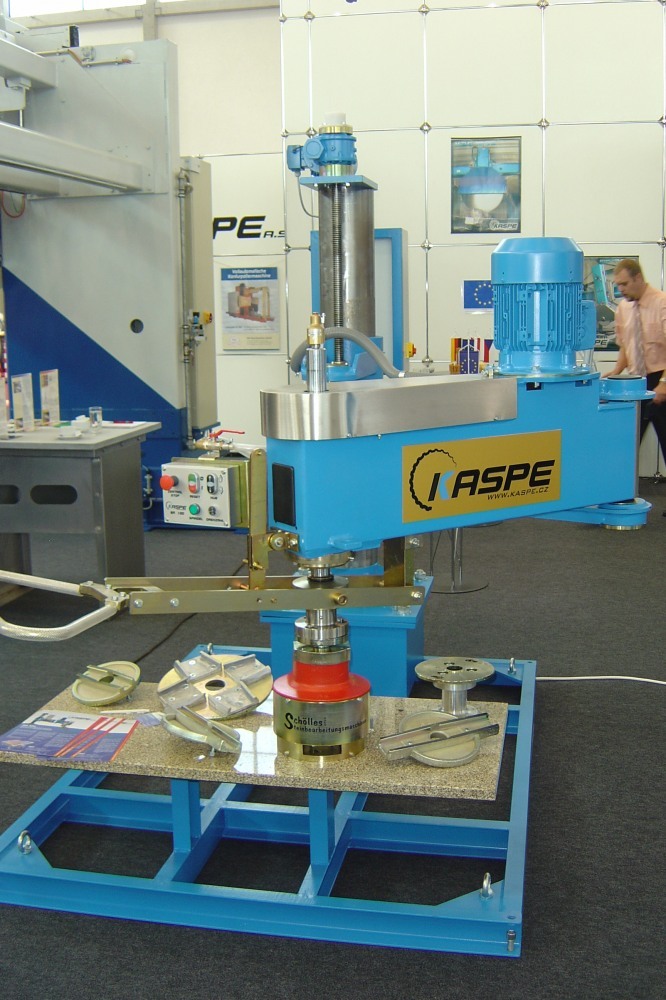

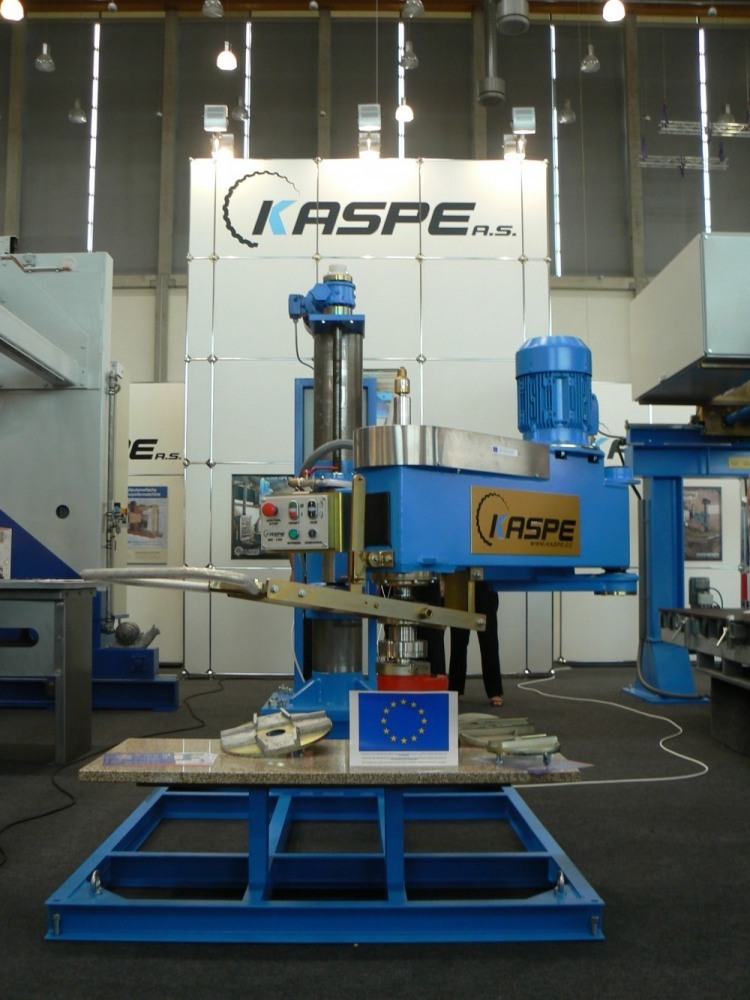

BR 100

The machine is intended for manual grinding

The grinding and milling arm are intended to mill, drill and grind monuments, kitchen boards, and washing tables. Grinding arm in the column version, the spindle's operating range, 2 x 1,100 mm, including fixed hydraulic lock. The lock is necessary, for example, in drilling. The pneumatic compression device operating through the movement of pivots for the arc or profile milling as well as for face grinding. Pneumatic movement of the grinding and milling spindle for surface grinding as well as for the attainment of spindle oscillation motion when roller tools are used for milling and grinding or with effective application of a shank cutter. The 5.5 kW driving engine is equipped with continuous speed control system to allow the speed from 190 – 2,550 rpm on the working shaft. The height on the column is set to 700 mm (by engine) and the height on the spindle to 120 mm (pneumatically). The height of the guide handle is adjustable so it can be adapted in the optimum manner. It is possible to place the folding guard to the bottom part of column and spindle. Centre through-spindle coolant supply is controlled manually.
